RAWM SA-MH01

Performance & Sensor

• Sensor Model:
• Standard Variant: PixArt PAW3395 Flagship Optical Sensor
• Pro Variant: PixArt PAW3950 Premium Optical Sensor
• Max DPI:
• Standard: Up to 26,000 DPI
• Pro: Up to 30,000 DPI
• Tracking Speed (IPS): 650 IPS (Standard) / 750 IPS (Pro)
• Max Acceleration: 50G
• Polling Rate: Up to 8,000 Hz (8K) wireless (Note: Standard edition typically ships with a 1K receiver and requires a separate 8K dongle, while the Pro bundle often includes it).
• Main Chipset: Nordic 52840 MCU

Build & Design

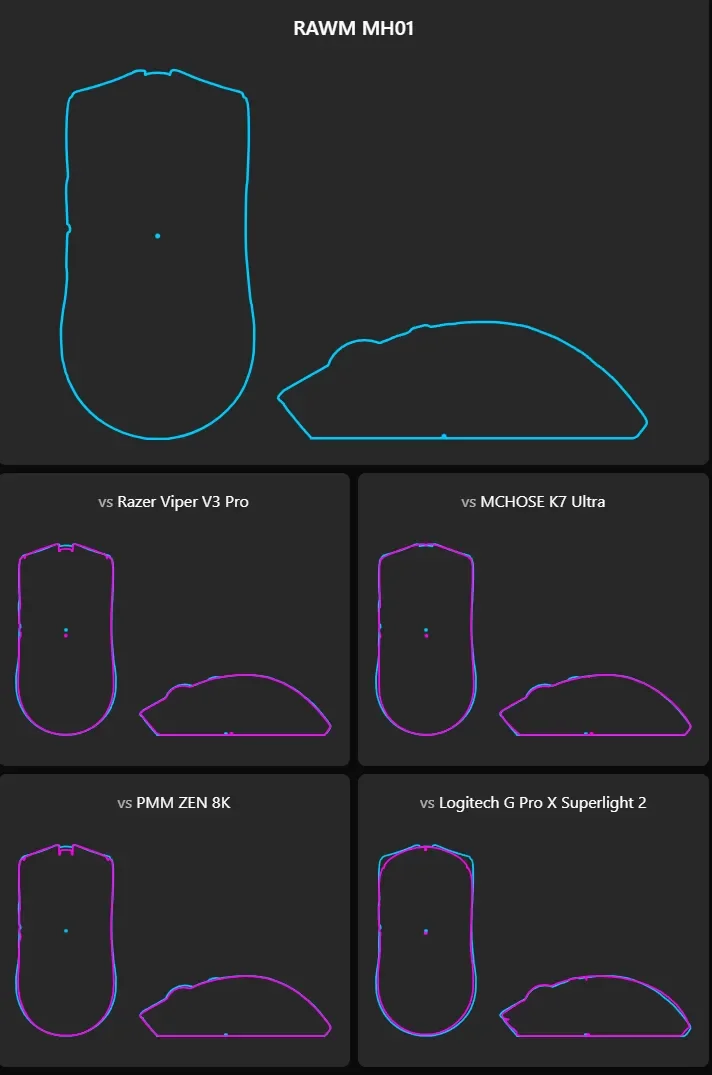

• Shape: Large, symmetrical ergonomic design with a minimal back hump (similar profile to the Razer Viper V3 Pro).
• Dimensions: 127.2 mm × 66.0 mm × 40.1 mm
• Weight:
• Standard / 300mAh: ~65g
• Endurance / 600mAh / Pro: ~69g – 70g
• Left/Right Switches: Hot-Swappable socket configuration
• Standard: Huano Transparent Blue Shell Pink Dot (rated for 80 million clicks)
• Pro: Huano Transparent Green Shell White Dot (rated for 100 million clicks)
• Scroll Wheel Encoder: Mechanical F-Switch Encoder
• Total Buttons: 5 to 6 buttons
• Feet Skates: 100% pure white PTFE Teflon skates

Connectivity & Power

• Connection Modes: Tri-Mode (High-Speed 2.4GHz Wireless, Bluetooth 5.3, and Type-C Wired USB)
• Battery Capacity & Battery Life (at 1000Hz):
• 300mAh Configuration: Up to 80 hours continuous runtime
• 600mAh Configuration (Endurance/Pro): Up to 165 hours continuous runtime
• Charging Interface: USB Type-C Fast Charging

Software Ecosystem

• Driver Compatibility: Highly customizable using the RAWM HUB driver (supports executable desktop software, web-based driver configurations, as well as iOS/Android app integration). Customizable controls feature button macro layout mapping, Lift-Off Distance (LOD) toggling between 1–2mm, and separate X/Y axis DPI scaling.
